Kobelco SK200-8 Hyd Lines,Pump — Exploded View & Part Numbers

Kobelco SK200-8 · Hyd Lines,Pump · 28 part numbers

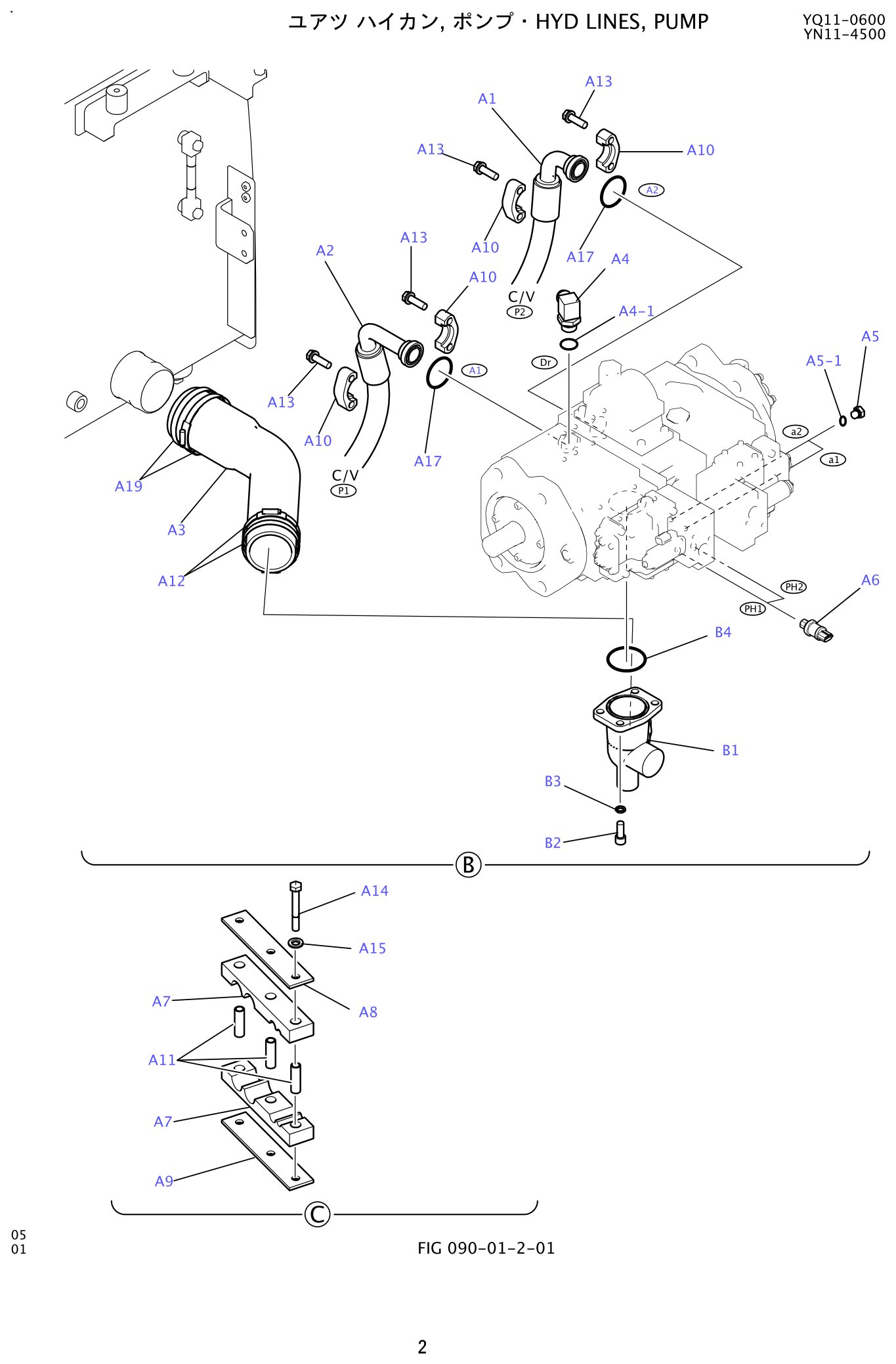

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Hyd Lines,Pump

The Kobelco SK200-8 Hyd Lines,Pump breaks down into 28 individually orderable part numbers. The Ref. column mirrors the callout numbers on the illustration, so a part can be ordered straight from the drawing. The list comes straight from the Kobelco SK200-8 catalogue for this machine family.

• 28 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

The 28 entries group into 15 distinct number series, led by YN30H, ZD12P. Expect repeated items such as hose, ring, hyd and 8 hardware positions when you work through it.

Where to start in this table: HM83C12040G1 (sems-bolt, ×16 per assembly); ZE13X16000 (clamp,half, ×8 per assembly); ZD12P03400 (o-ring, ×4 per assembly). The full list follows below.

Send us the Kobelco SK200-8 serial number together with the part number or the symptom you are chasing. We confirm fitment from the serial range before quoting, and mixed orders are consolidated into a single shipment — a set of seals does not travel in its own parcel.

Hydraulic components are the heart of the Kobelco SK200-8: main pump delivery, swing and travel drive, control valve sections and the lines and seals that connect them. When a circuit loses power, drifts under load, or runs noisy when warm, the fault is usually traced to one of the components in this group rather than to the machine as a whole.
