Kobelco SK200-8 Hyd Lines,Return — Exploded View & Part Numbers

Kobelco SK200-8 · Hyd Lines,Return · 24 part numbers

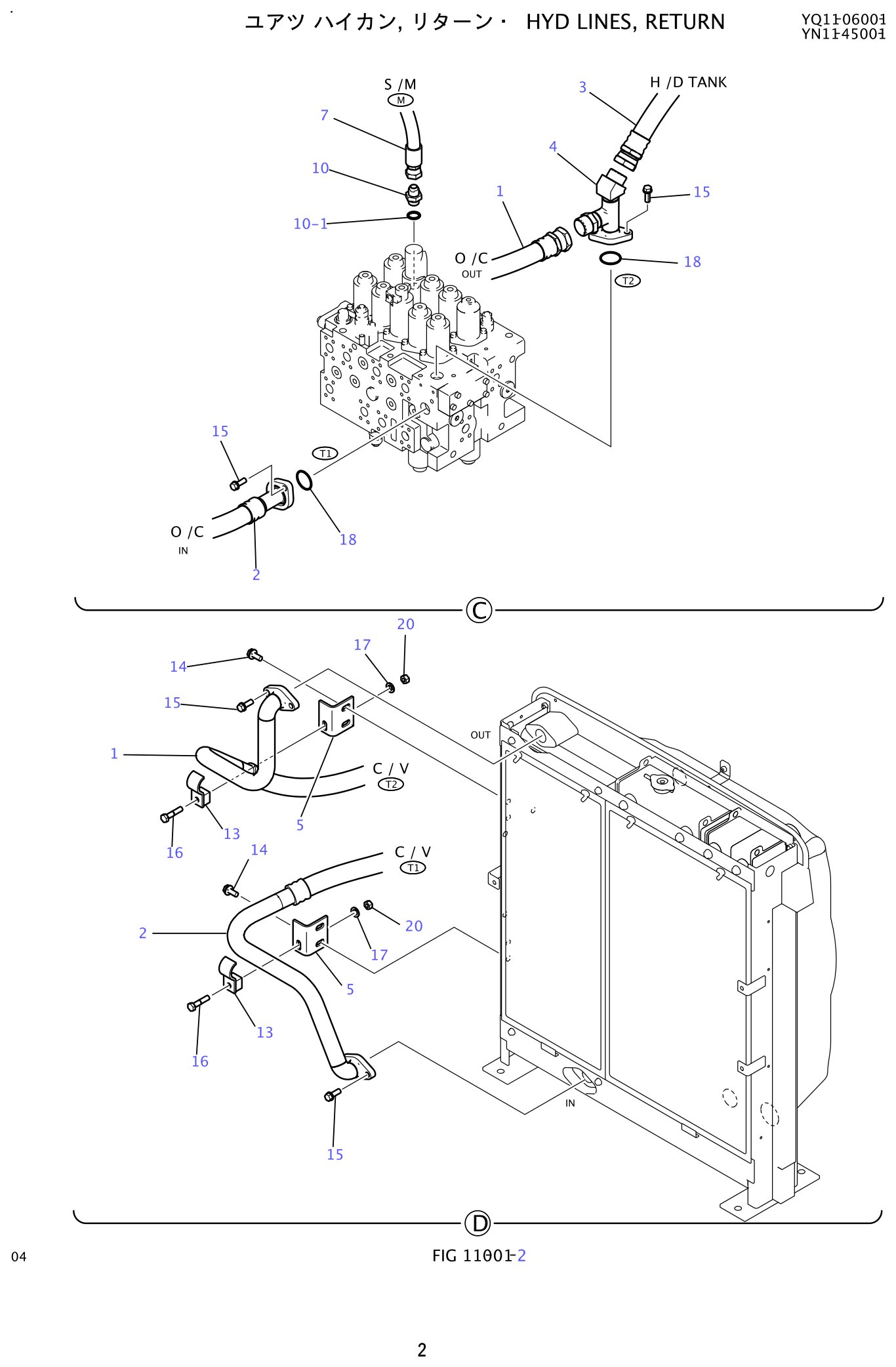

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Hyd Lines,Return

Every part number in the Kobelco SK200-8 Hyd Lines,Return is listed here — 24 of them, with quantities. Take the callout number from the drawing and match it in the Ref. column below. All numbers are taken from the machine's own parts catalogue — nothing here is generic.

• 24 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

The 24 entries group into 10 distinct number series, led by YN32H, ZX22M. Expect repeated items such as hose, ring, connector and 5 hardware positions when you work through it.

If you are quoting from this group, start with: HM83C12035G1 (sems-bolt, ×10 per assembly); ZM73C12030 (sems-bolt, ×4 per assembly); ZH22X12000 (connector, ×3 per assembly). The full list follows below.

Seal kits for this group are quoted from the same table — the O-ring and seal positions carry their own numbers, so a hydraulic repair never forces a purchase at assembly level.

Every hydraulic item we quote is declared by condition: genuine, ordered through original supply channels, or a quality OEM alternative. The declaration appears on the quotation itself, never buried in an invoice, so you know exactly what you are fitting before you commit.
