Kobelco SK200-8 Hyd Lines,Upp (Main) — Exploded View & Part Numbers

Kobelco SK200-8 · Hyd Lines,Upp (Main) · 37 part numbers

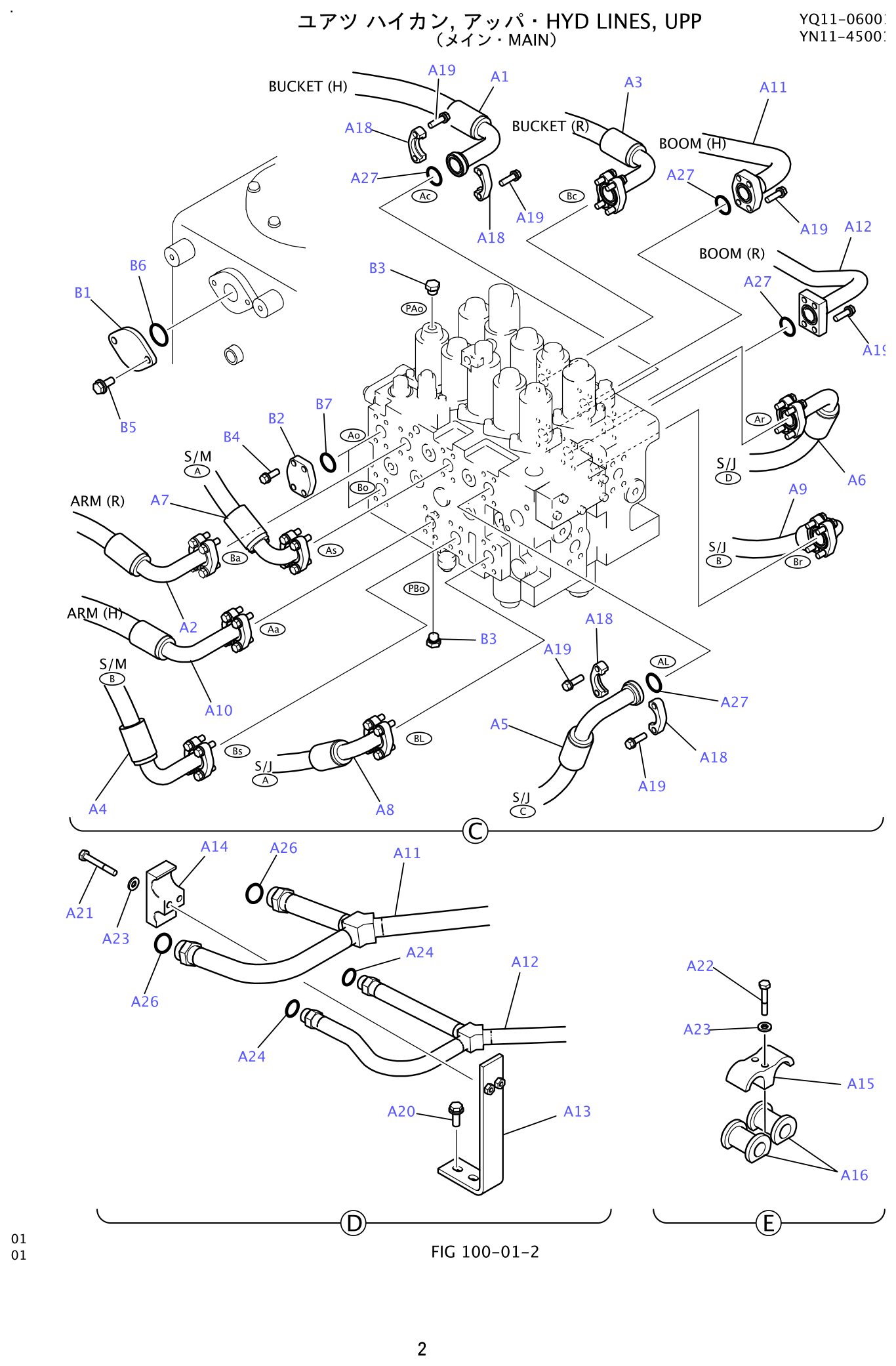

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Hyd Lines,Upp (Main)

Below is the complete Kobelco SK200-8 Hyd Lines,Upp (Main) — 37 part numbers with the quantity fitted per assembly. Take the callout number from the drawing and match it in the Ref. column below. All numbers are taken from the machine's own parts catalogue — nothing here is generic.

• 37 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Structurally, these 37 numbers fall into 11 Kobelco number series — YN03H, ZD12P, ZD12A among the largest. Expect repeated items such as hose, ring, sems and 10 hardware positions when you work through it.

Three numbers worth noting first: HM83C10035G1 (sems-bolt, ×48 per assembly); ZE12X16000 (clamp,half, ×20 per assembly); ZD12P03400 (o-ring, ×12 per assembly). The full list follows below.

Rebuild-at-component-level is the practical route for most Kobelco SK200-8 hydraulic assemblies. Wear shows up at predictable points — spool clearances, valve plates, bearing sets, seal packages — and those items are listed individually, so you can quote only what is worn instead of exchanging the complete unit.

Seal kits for this group are quoted from the same table — the O-ring and seal positions carry their own numbers, so a hydraulic repair never forces a purchase at assembly level.
