Kobelco SK200-8 Joint Assembly,Swivel — Exploded View & Part Numbers

Kobelco SK200-8 · Joint Assembly,Swivel · 14 part numbers

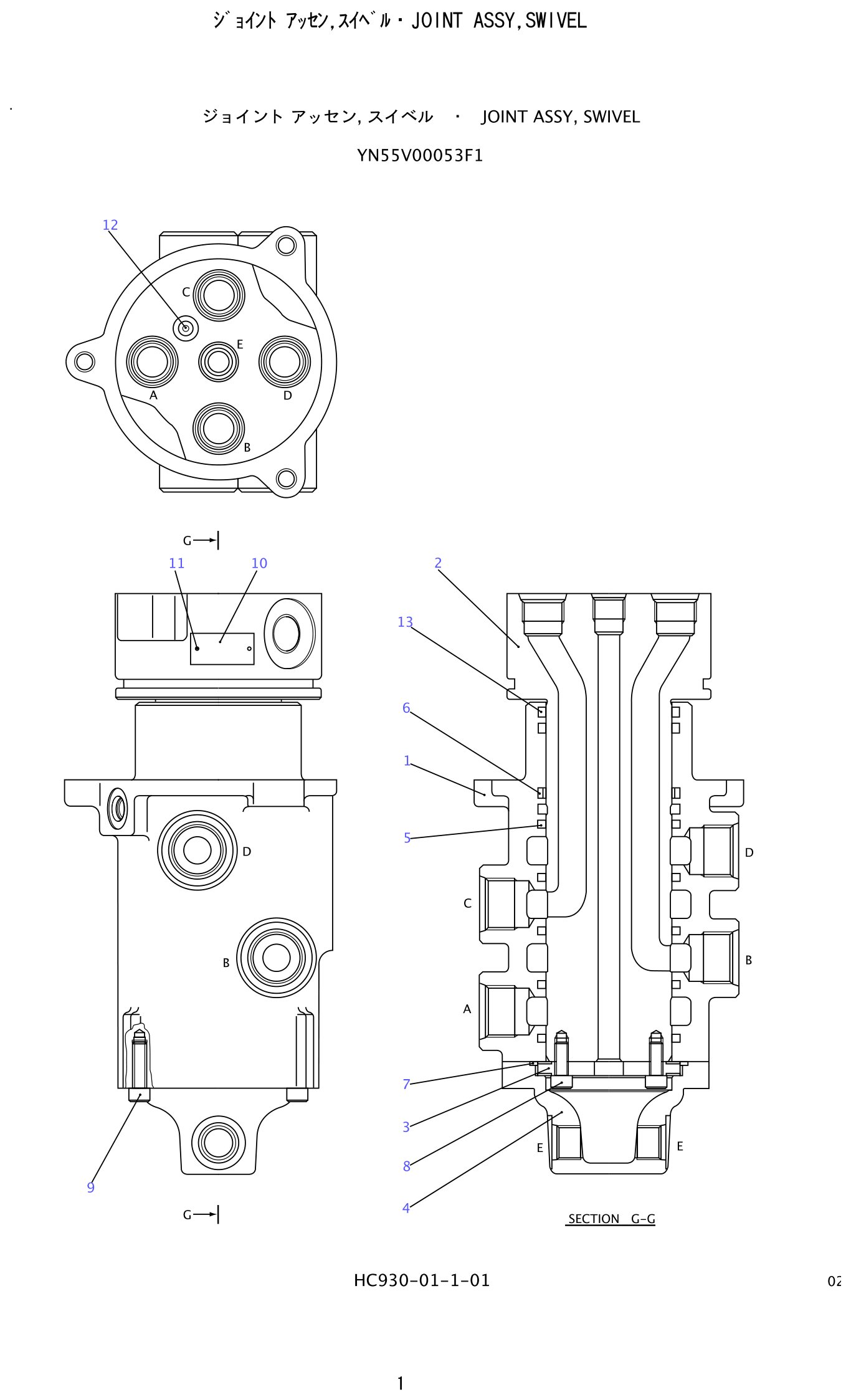

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Joint Assembly,Swivel

Every part number in the Kobelco SK200-8 Joint Assembly,Swivel is listed here — 14 of them, with quantities. Where the drawing shows a callout, the Ref. column in the table carries the same number. The list comes straight from the Kobelco SK200-8 catalogue for this machine family.

• 14 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

The 14 entries group into 8 distinct number series, led by YN55V, ZS23C. Expect repeated items such as plate, seal, ring and 3 hardware positions when you work through it.

Three numbers worth noting first: YN55V01057P1 (seal, ×5 per assembly); ZS23C08030 (capscrew, ×3 per assembly); ZS23C08020 (capscrew, ×2 per assembly). The full list follows below.

Working from the exploded view is the fastest way to order. Find the component on the drawing, note its callout number, and take the matching reference from the table — that mapping removes the guesswork that comes with describing a part over the phone or in an email.

For workshops planning a full hydraulic health check, the practical sequence is seals first, then wear items such as valve plates and bushings, and only then complete assemblies. The table below supports that sequence because every level of the breakdown is separately orderable.
