Kobelco SK200-8 Motor Assembly (Swing) — Exploded View & Part Numbers

Kobelco SK200-8 · Motor Assembly (Swing) · 36 part numbers

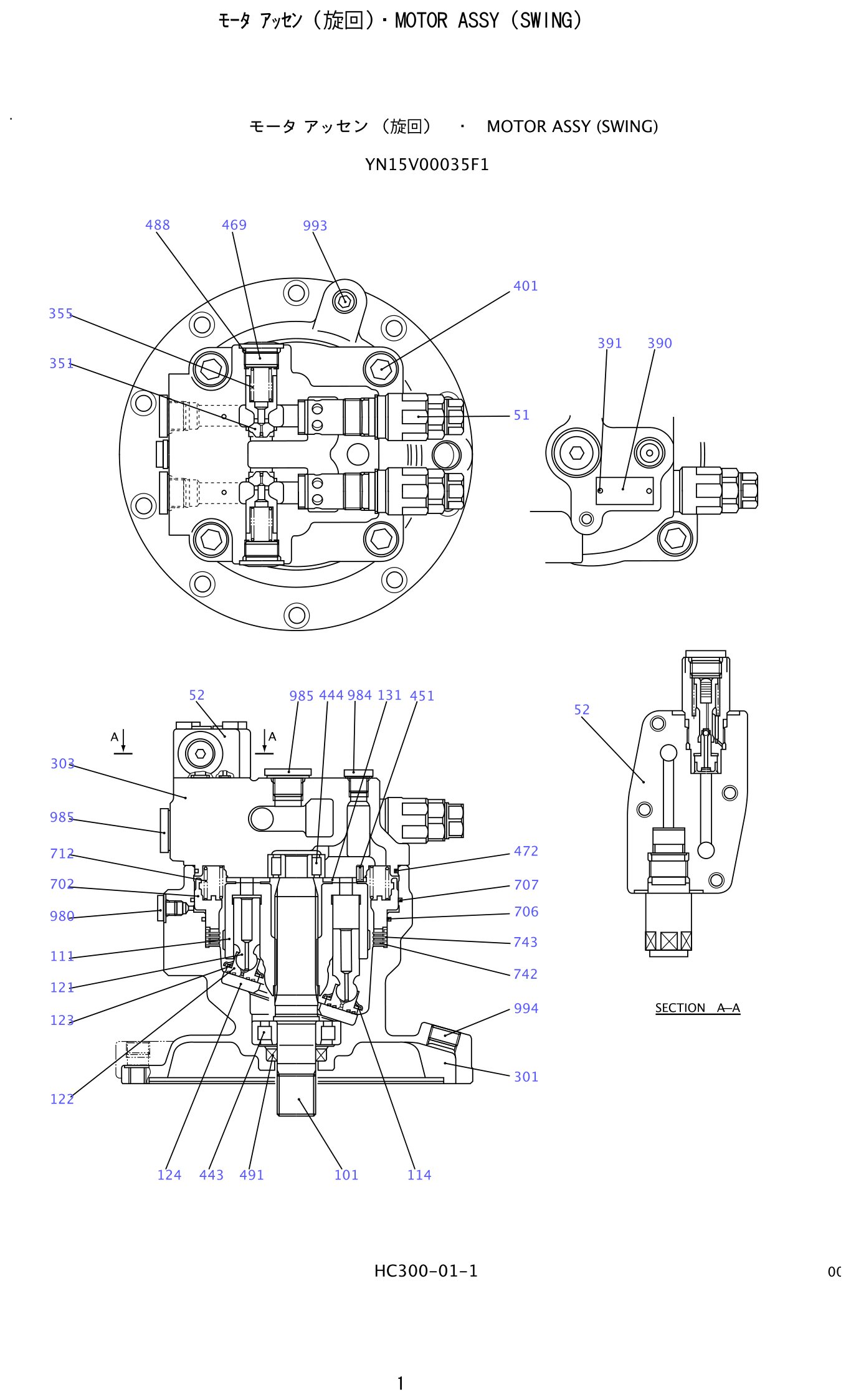

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Motor Assembly (Swing)

This page lists all 36 part numbers in the Kobelco SK200-8 Motor Assembly (Swing). The Ref. column mirrors the callout numbers on the illustration, so a part can be ordered straight from the drawing. The list comes straight from the Kobelco SK200-8 catalogue for this machine family.

• 36 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Read as a dataset, the 36 part numbers spread across 11 number series (YN15V, ZE82T, YN22V being the biggest) In practice that means repeated items such as plate, plug, ring and 7 hardware positions.

If you are quoting from this group, start with: YN15V00025S712 (spring, ×18 per assembly); ZS23C20045 (capscrew, ×4 per assembly); YN15V00025S743 (plate,separator, ×4 per assembly). The full list follows below.

Hydraulic components are the heart of the Kobelco SK200-8: main pump delivery, swing and travel drive, control valve sections and the lines and seals that connect them. When a circuit loses power, drifts under load, or runs noisy when warm, the fault is usually traced to one of the components in this group rather than to the machine as a whole.

Swing, travel and implement circuits share the same pump flow on the Kobelco SK200-8, which is why a fault in one function can point back to a component listed in this group. A pressure test narrows the circuit down; the drawing then narrows it to a part number.
