Kobelco SK200-8 Pump Assembly,Gear — Exploded View & Part Numbers

Kobelco SK200-8 · Pump Assembly,Gear · 19 part numbers

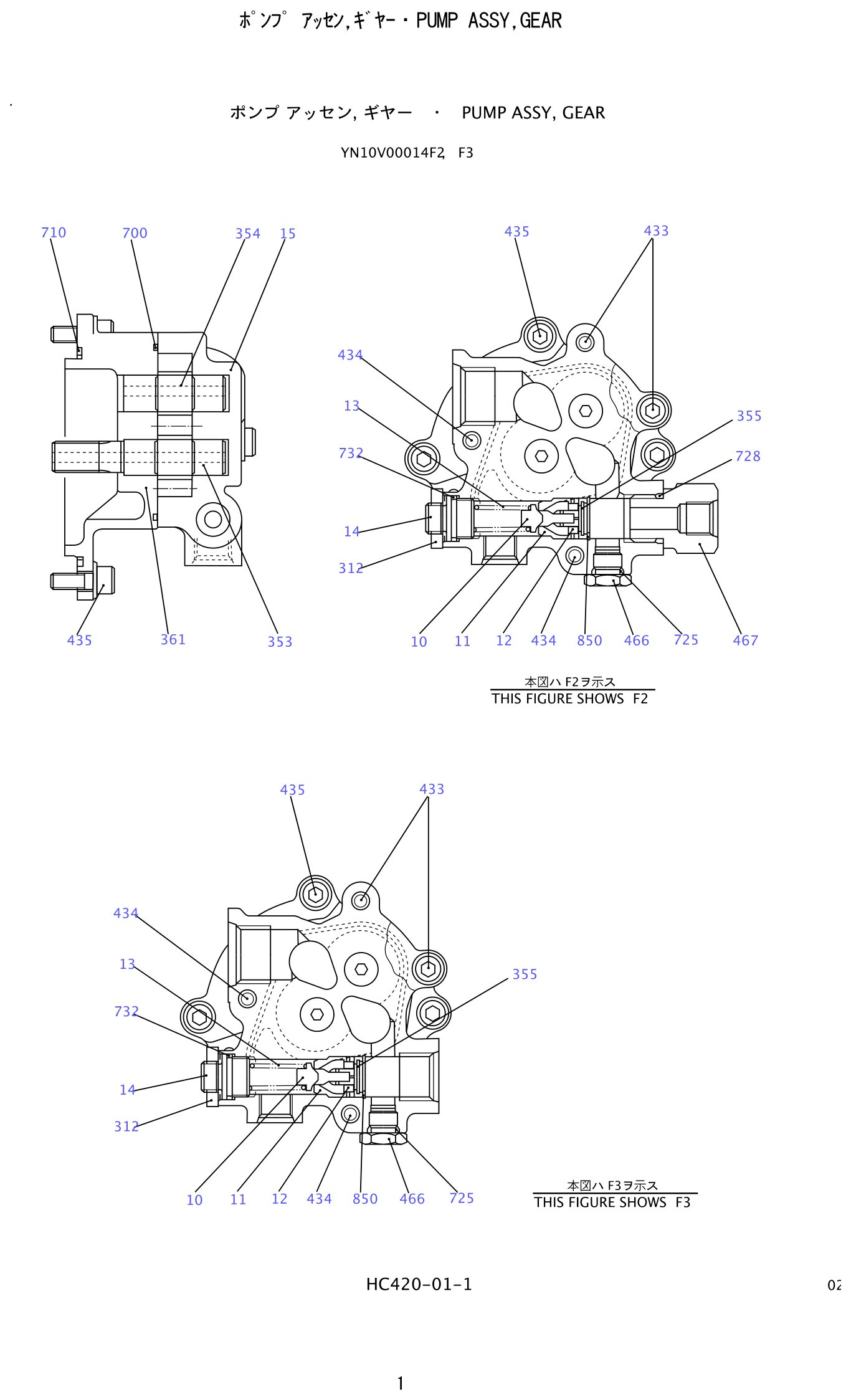

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Pump Assembly,Gear

Every part number in the Kobelco SK200-8 Pump Assembly,Gear is listed here — 19 of them, with quantities. Where the drawing shows a callout, the Ref. column in the table carries the same number. Every entry is a genuine Kobelco part number, confirmed against the serial range before we quote.

• 19 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

The 19 entries group into 5 distinct number series, led by YN10V, ZD12P. Expect repeated items such as ring, sems, bolt and 6 hardware positions when you work through it.

Three numbers worth noting first: YN10V00014S435 (capscrew, ×4 per assembly); YN10V00006S433 (sems-bolt, ×2 per assembly); YN10V00006S434 (sems-bolt, ×2 per assembly). The full list follows below.

Seal kits for this group are quoted from the same table — the O-ring and seal positions carry their own numbers, so a hydraulic repair never forces a purchase at assembly level.

Every hydraulic item we quote is declared by condition: genuine, ordered through original supply channels, or a quality OEM alternative. The declaration appears on the quotation itself, never buried in an invoice, so you know exactly what you are fitting before you commit.
