Kobelco SK200-8 Valve Assembly,Control — Exploded View & Part Numbers

Kobelco SK200-8 · Valve Assembly,Control · 88 part numbers

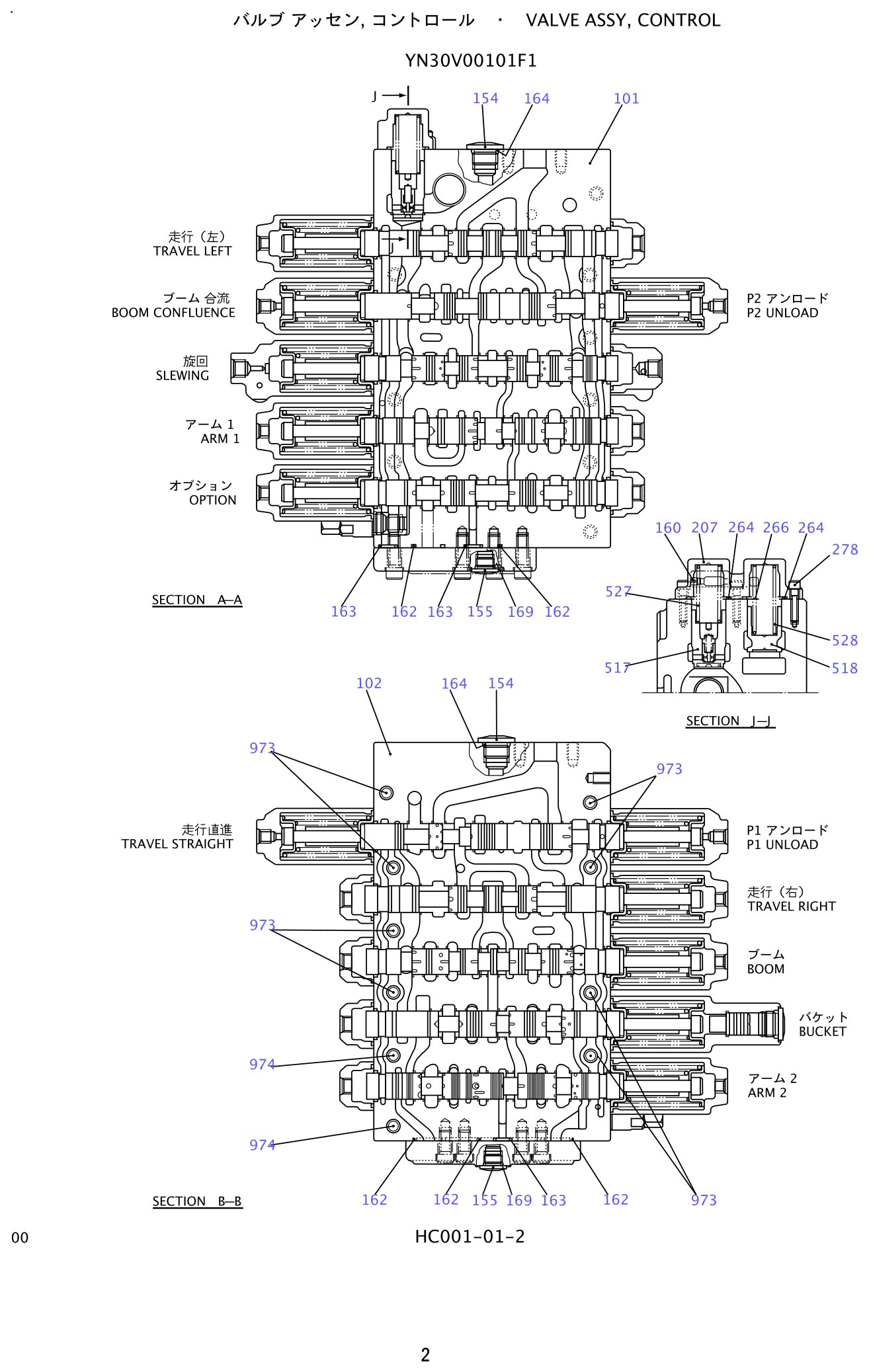

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Valve Assembly,Control

The Kobelco SK200-8 Valve Assembly,Control breaks down into 88 individually orderable part numbers. Callout numbers on the exploded view map one-to-one to the Ref. column in the table. The list comes straight from the Kobelco SK200-8 catalogue for this machine family.

• 88 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

The 88 entries group into 7 distinct number series, led by YN30V, 2436U. Expect repeated items such as spring, spool, repair and 13 hardware positions when you work through it.

The high-quantity positions are: ZS23C08025 (capscrew, ×40 per assembly); 2436U1443S332 (seat,spring, ×24 per assembly); ZD12P02400 (o-ring, ×19 per assembly). The full list follows below.

Working from the exploded view is the fastest way to order. Find the component on the drawing, note its callout number, and take the matching reference from the table — that mapping removes the guesswork that comes with describing a part over the phone or in an email.

For workshops planning a full hydraulic health check, the practical sequence is seals first, then wear items such as valve plates and bushings, and only then complete assemblies. The table below supports that sequence because every level of the breakdown is separately orderable.
