Kobelco SK200-8 Valve Assembly,Control — Exploded View & Part Numbers

Kobelco SK200-8 · Valve Assembly,Control · 11 part numbers

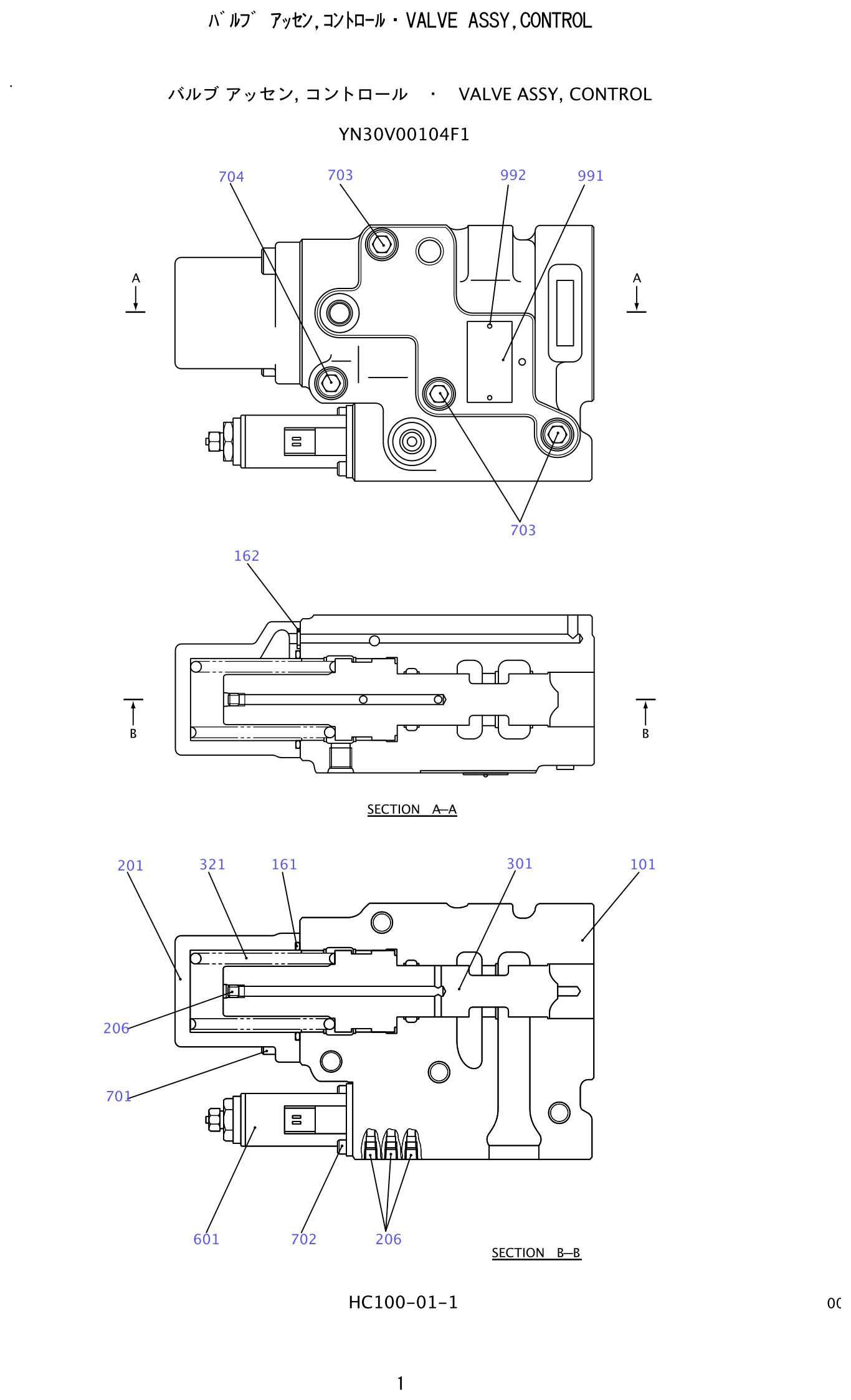

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Valve Assembly,Control

The Valve Assembly,Control group on the Kobelco SK200-8 contains 11 separately orderable part numbers. The Ref. column mirrors the callout numbers on the illustration, so a part can be ordered straight from the drawing. The list comes straight from the Kobelco SK200-8 catalogue for this machine family.

• 11 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Structurally, these 11 numbers fall into 6 Kobelco number series — YN30V, ZS23C, ZD12G among the largest. In practice that means repeated items such as capscrew, valve, ring and 4 hardware positions.

The high-quantity positions are: ZS23C12105 (capscrew, ×3 per assembly); ZS23C10025 (capscrew, ×2 per assembly); YX35V00002S171 (capscrew, ×2 per assembly). The full list follows below.

Rebuild-at-component-level is the practical route for most Kobelco SK200-8 hydraulic assemblies. Wear shows up at predictable points — spool clearances, valve plates, bearing sets, seal packages — and those items are listed individually, so you can quote only what is worn instead of exchanging the complete unit.

Seal kits for this group are quoted from the same table — the O-ring and seal positions carry their own numbers, so a hydraulic repair never forces a purchase at assembly level.
