Kobelco SK200-8 Valve Assembly,Pilot — Exploded View & Part Numbers

Kobelco SK200-8 · Valve Assembly,Pilot · 16 part numbers

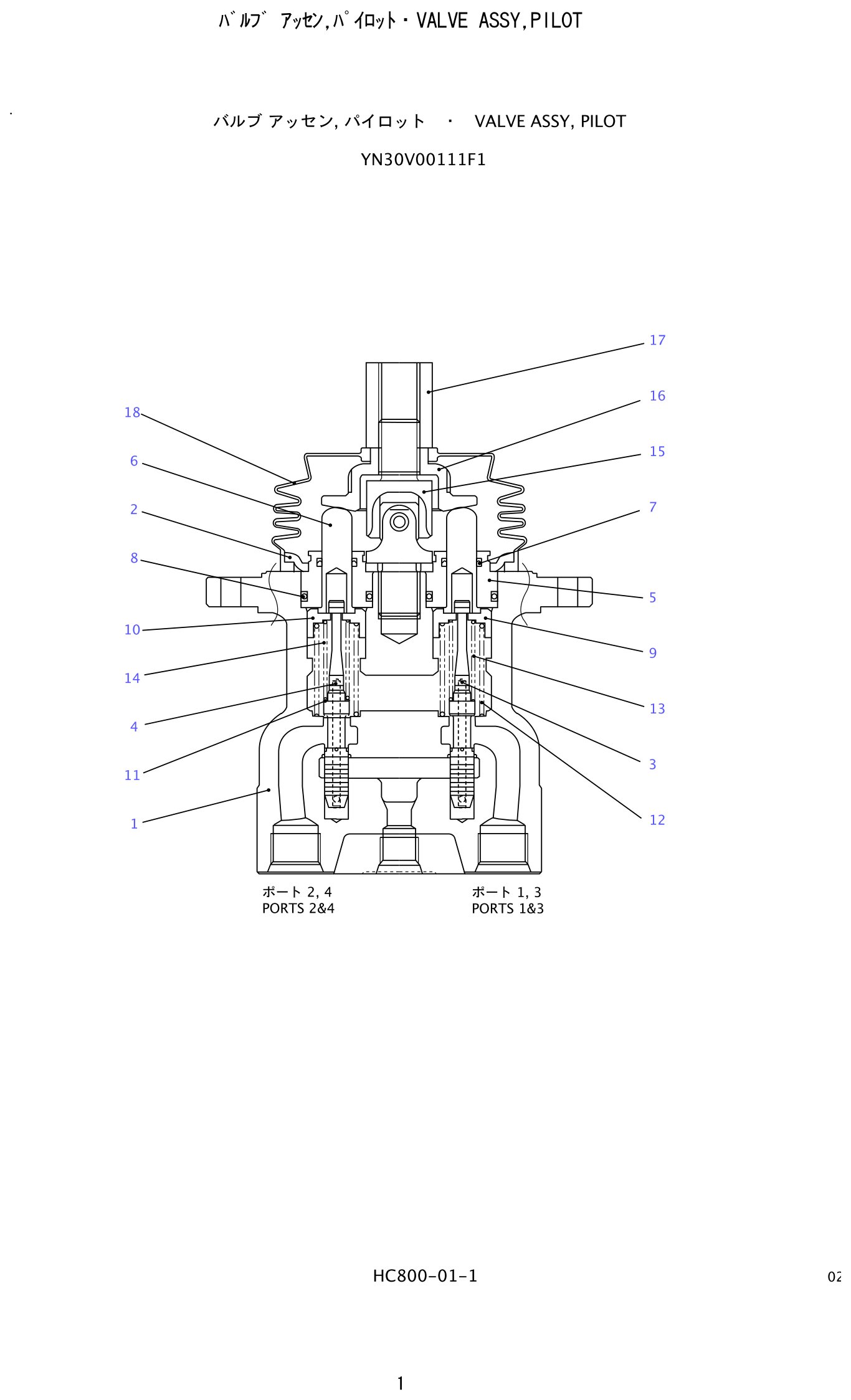

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Valve Assembly,Pilot

Below is the complete Kobelco SK200-8 Valve Assembly,Pilot — 16 part numbers with the quantity fitted per assembly. Take the callout number from the drawing and match it in the Ref. column below. Every entry is a genuine Kobelco part number, confirmed against the serial range before we quote.

• 16 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Structurally, these 16 numbers fall into 5 Kobelco number series — YT30V, 2436U, YN30V among the largest. In practice that means repeated items such as spring, plate, seat and 3 hardware positions.

Three numbers worth noting first: 2436U1277S211 (plug, ×4 per assembly); 2436U2938S212 (rod,push, ×4 per assembly); 2436U1277S213 (seal, ×4 per assembly). The full list follows below.

The Valve Assembly,Pilot group on the Kobelco SK200-8 contains 16 separately orderable part numbers, all listed in the table below with the quantity fitted per assembly. Every number in the table is a real Kobelco part number taken from the machine's own parts catalogue, not a generic cross-reference.

Send us the Kobelco SK200-8 serial number together with the part number or the symptom you are chasing. We confirm fitment from the serial range before quoting, and mixed orders are consolidated into a single shipment — a set of seals does not travel in its own parcel.
