Kobelco SK200-8 Window Assembly,Front — Exploded View & Part Numbers

Kobelco SK200-8 · Window Assembly,Front · 15 part numbers

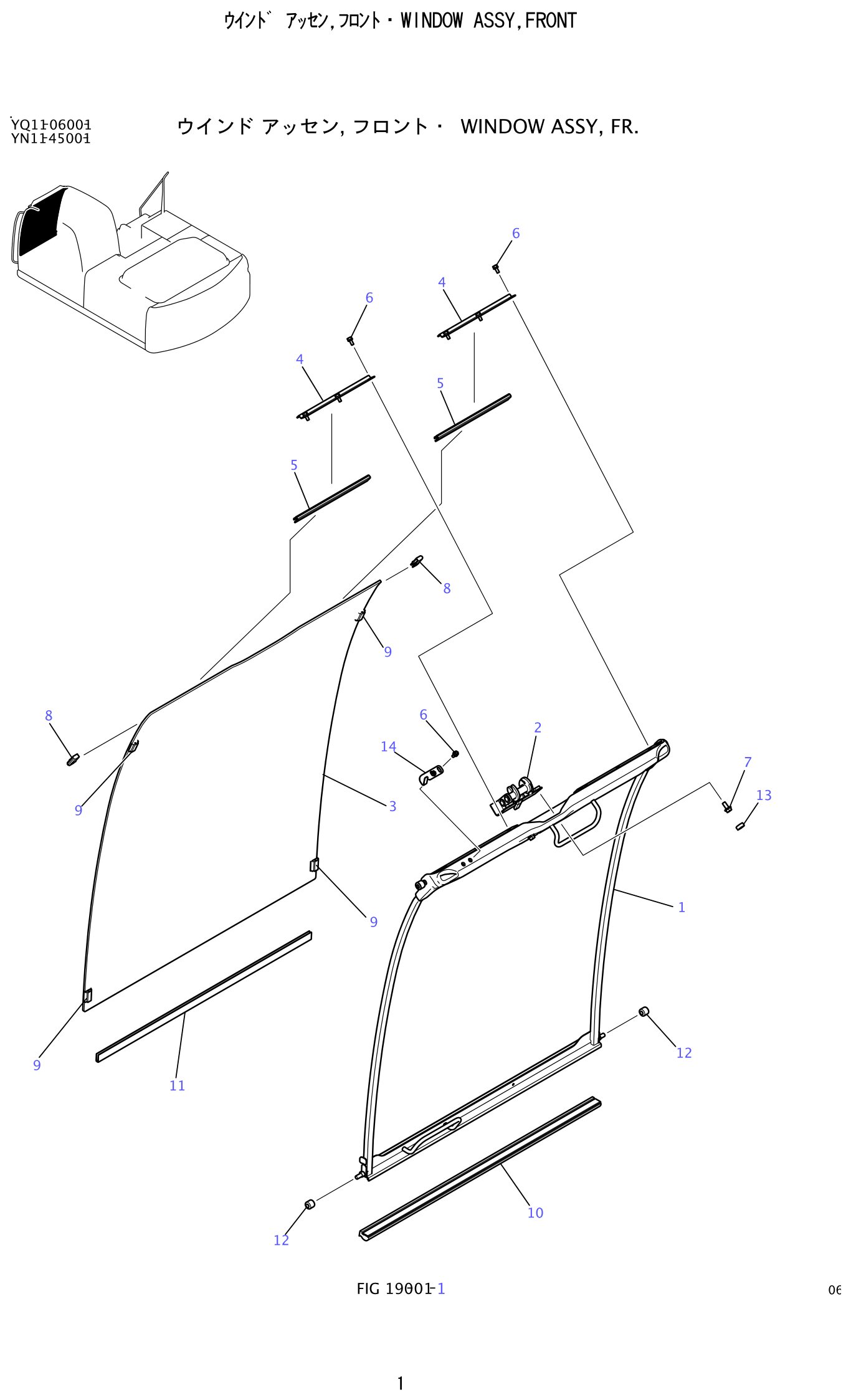

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Window Assembly,Front

Every part number in the Kobelco SK200-8 Window Assembly,Front is listed here — 15 of them, with quantities. Where the drawing shows a callout, the Ref. column in the table carries the same number. The list comes straight from the Kobelco SK200-8 catalogue for this machine family.

• 15 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

The 15 entries group into 5 distinct number series, led by YN50C, YT50C. In practice that means repeated items such as rubber, plate, sems and 2 hardware positions.

Three numbers worth noting first: ZM66C06016 (sems-bolt, ×8 per assembly); YT50C01023P1 (rubber, ×4 per assembly); YT50C01012P1 (roller, ×4 per assembly). The full list follows below.

Interior items such as panels, trim and floor plates carry their own numbers in this group, which keeps a cab refit a list of orderable parts rather than an improvised repair.

As with every group we ship, each item is declared by condition — genuine via original supply channels, or a quality OEM alternative — on the quotation itself. Nothing is left to the invoice.
