Kobelco SK200-8 Battery Assembly — Exploded View & Part Numbers

Kobelco SK200-8 · Battery Assembly · 10 part numbers

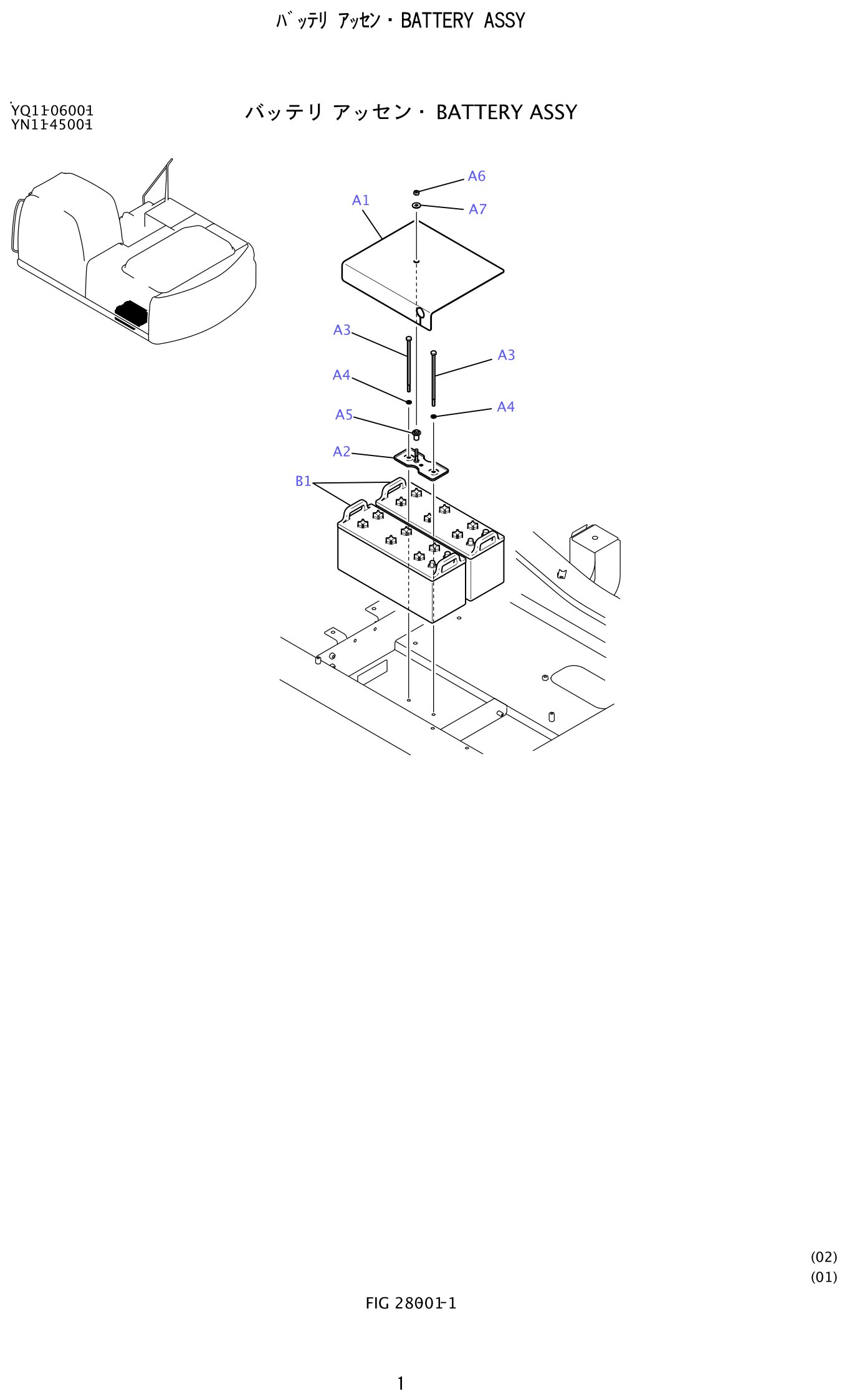

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Battery Assembly

The Battery Assembly group on the Kobelco SK200-8 contains 10 separately orderable part numbers. The Ref. column mirrors the callout numbers on the illustration, so a part can be ordered straight from the drawing. Every entry is a genuine Kobelco part number, confirmed against the serial range before we quote.

• 10 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Structurally, these 10 numbers fall into 6 Kobelco number series — YN72E, R20T, ZW26X among the largest. Expect repeated items such as battery, washer, instal and 4 hardware positions when you work through it.

The high-quantity positions are: R20T0084D17 (capscrew, ×2 per assembly); ZW26X10000 (lock washer, ×2 per assembly); YN72S00014P1 (battery, ×2 per assembly). The full list follows below.

The Battery Assembly group on the Kobelco SK200-8 contains 10 separately orderable part numbers. The full list with quantities per assembly is in the table below.

Send the Kobelco SK200-8 serial number with the fault description. Machine-side electrical changed across the production run on some variants, and the serial number confirms the correct part before you order.
