Kobelco SK200-8 Controller Installation — Exploded View & Part Numbers

Kobelco SK200-8 · Controller Installation · 30 part numbers

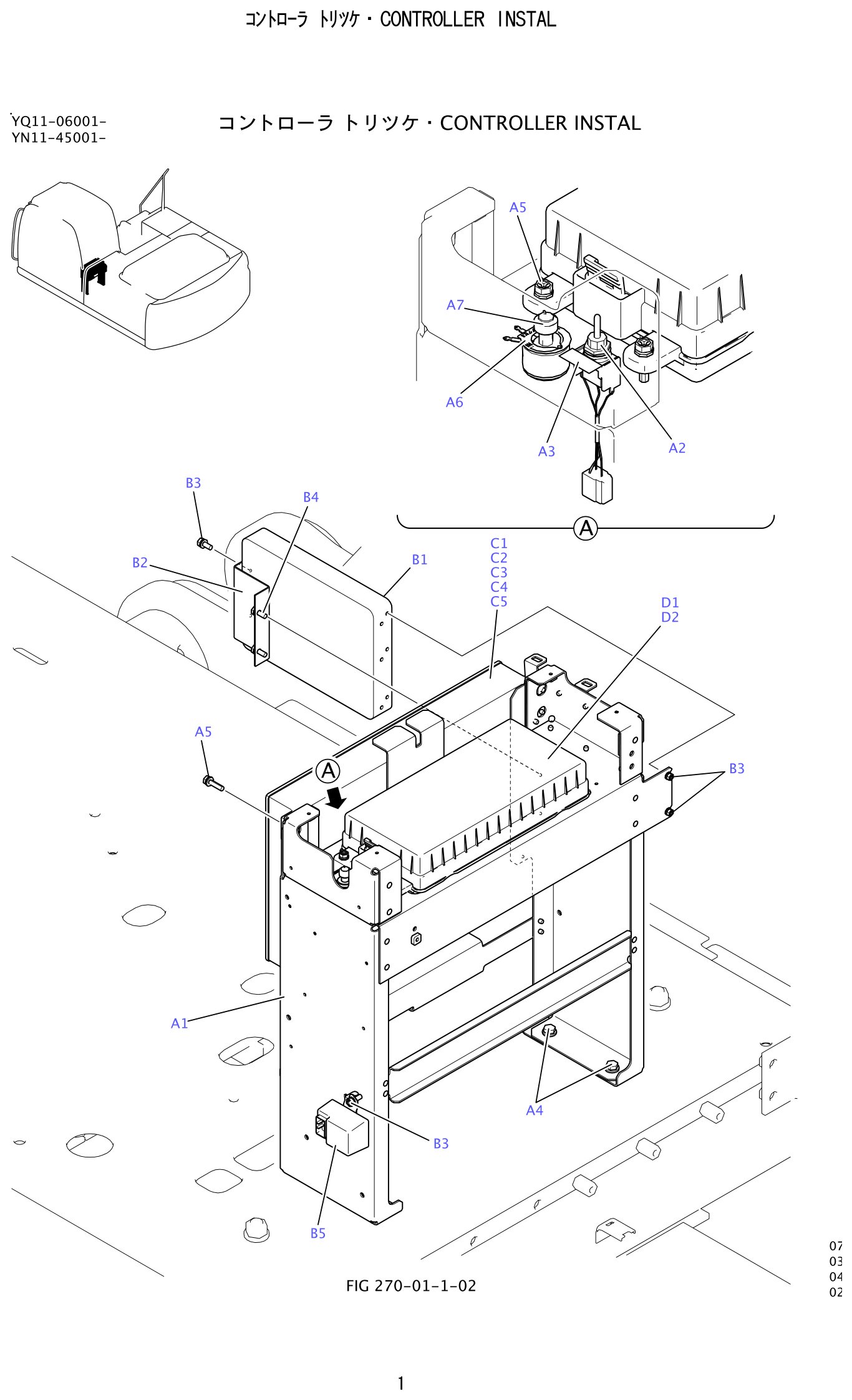

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Controller Installation

30 separately orderable part numbers make up the Controller Installation on the Kobelco SK200-8. Where the drawing shows a callout, the Ref. column in the table carries the same number. Every entry is a genuine Kobelco part number, confirmed against the serial range before we quote.

• 30 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Read as a dataset, the 30 part numbers spread across 11 number series (YN22E, ZM61C, YN24E being the biggest) Expect repeated items such as controller, sems, bolt and 4 hardware positions when you work through it.

Where to start in this table: ZM61C06025 (sems-bolt, ×7 per assembly); ZM73C08020 (sems-bolt, ×4 per assembly); ZM61C05012 (sems-bolt, ×4 per assembly). The full list follows below.

Electrical items are quoted with the condition declared: genuine through original supply channels, or a quality OEM alternative. For sensors and switches, genuine is usually the practical choice, and the quotation says which is which.

The Controller Installation group on the Kobelco SK200-8 contains 30 separately orderable part numbers. The full list with quantities per assembly is in the table below.
