Kobelco SK200-8 Harness Assembly,Upp — Exploded View & Part Numbers

Kobelco SK200-8 · Harness Assembly,Upp · 47 part numbers

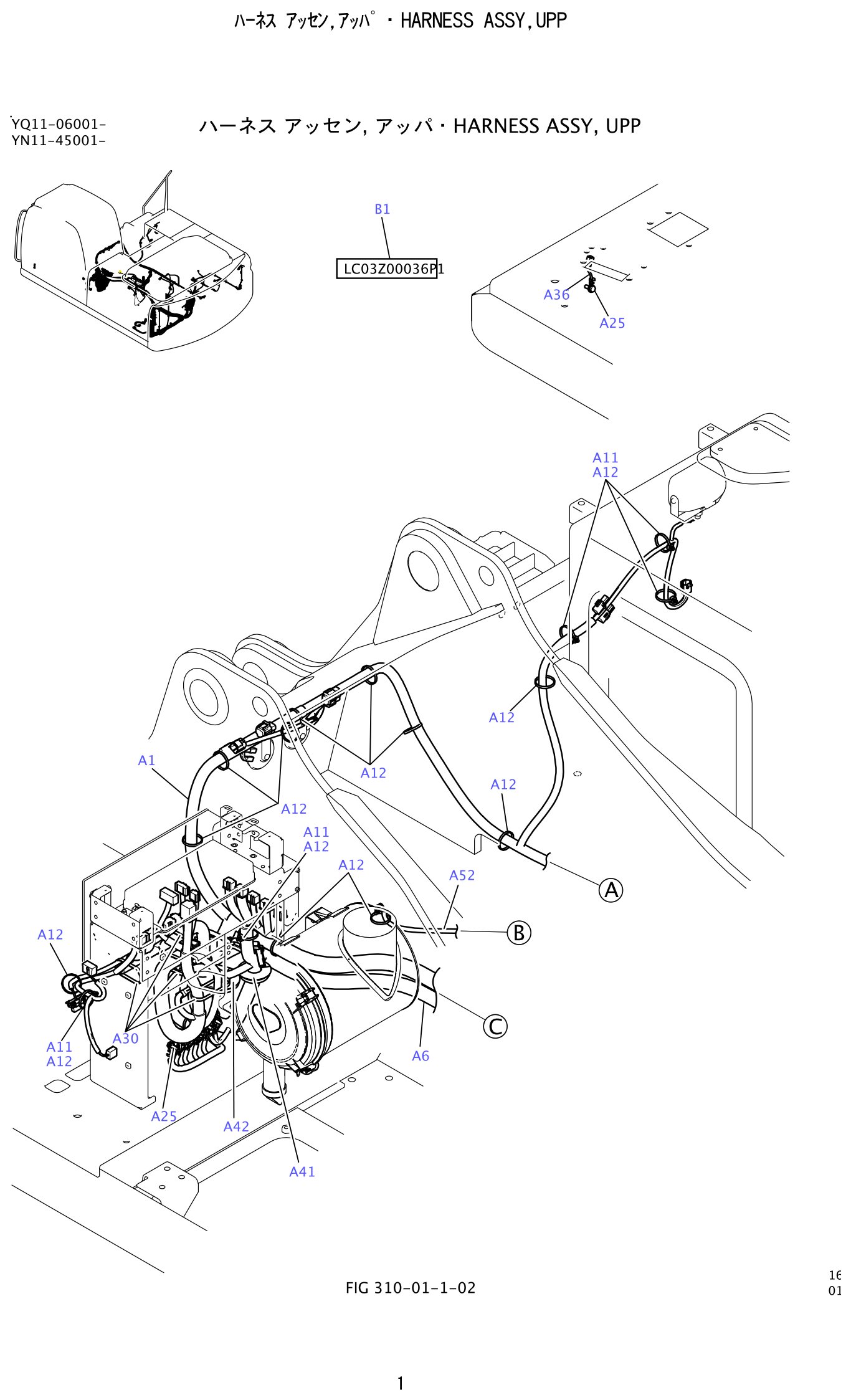

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Harness Assembly,Upp

Below is the complete Kobelco SK200-8 Harness Assembly,Upp — 47 part numbers with the quantity fitted per assembly. Where the drawing shows a callout, the Ref. column in the table carries the same number. All numbers are taken from the machine's own parts catalogue — nothing here is generic.

• 47 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Structurally, these 47 numbers fall into 15 Kobelco number series — YN13E, LC13E, EW02E among the largest. The list is weighted toward repeated items such as clip, harness, cable and 19 hardware positions.

If you are quoting from this group, start with: PY01P01043D3 (clip, ×75 per assembly); YN13E01375P1 (clip, ×27 per assembly); ZM73C08020 (sems-bolt, ×18 per assembly). The full list follows below.

The Harness Assembly,Upp group on the Kobelco SK200-8 contains 47 separately orderable part numbers. The full list with quantities per assembly is in the table below.

Send the Kobelco SK200-8 serial number with the fault description. Machine-side electrical changed across the production run on some variants, and the serial number confirms the correct part before you order.
