Kobelco SK200-8 Electrical Parts (Engine) — Exploded View & Part Numbers

Kobelco SK200-8 · Electrical Parts (Engine) · 54 part numbers

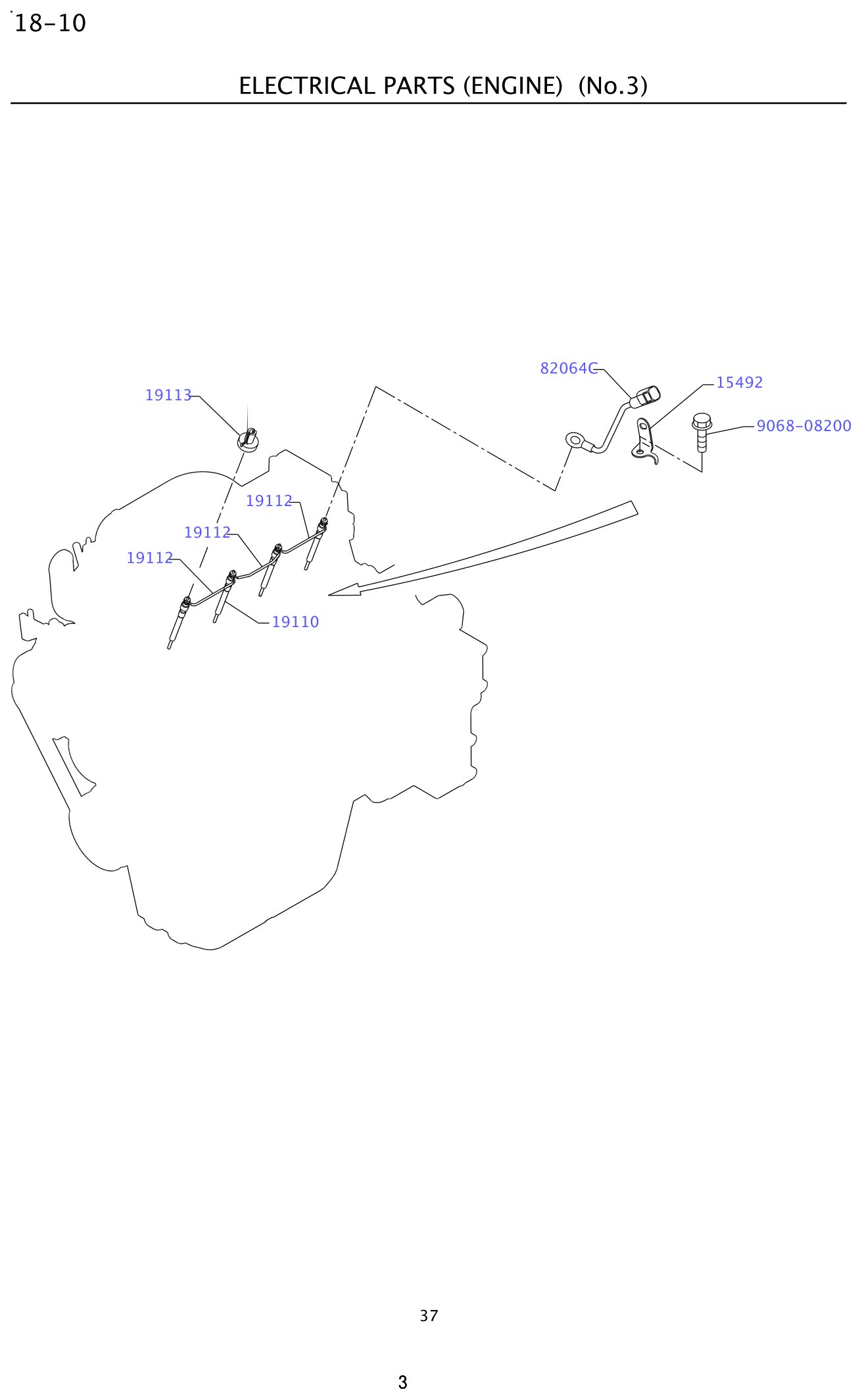

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Electrical Parts (Engine)

The Kobelco SK200-8 Electrical Parts (Engine) breaks down into 54 individually orderable part numbers. The Ref. column mirrors the callout numbers on the illustration, so a part can be ordered straight from the drawing. The list comes straight from the Kobelco SK200-8 catalogue for this machine family.

• 54 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

The 54 entries group into 25 distinct number series, led by VH120, VH906. Expect repeated items such as sub, bolt, bracket and 25 hardware positions when you work through it.

Where to start in this table: VH924008087A (nut, ×5 per assembly); VH191101261A (plug assy,glow, ×4 per assembly); VH191131050A (insulator glow plug, ×4 per assembly). The full list follows below.

Monitor and controller items vary by machine build, so the serial number matters more in this group than in most. Send it with the fault description and we confirm the correct variant before quoting.

Electrical items are quoted with the condition declared: genuine through original supply channels, or a quality OEM alternative. For sensors and switches, genuine is usually the practical choice, and the quotation says which is which.
