Kobelco SK200-8 Harness Assembly,Engine — Exploded View & Part Numbers

Kobelco SK200-8 · Harness Assembly,Engine · 10 part numbers

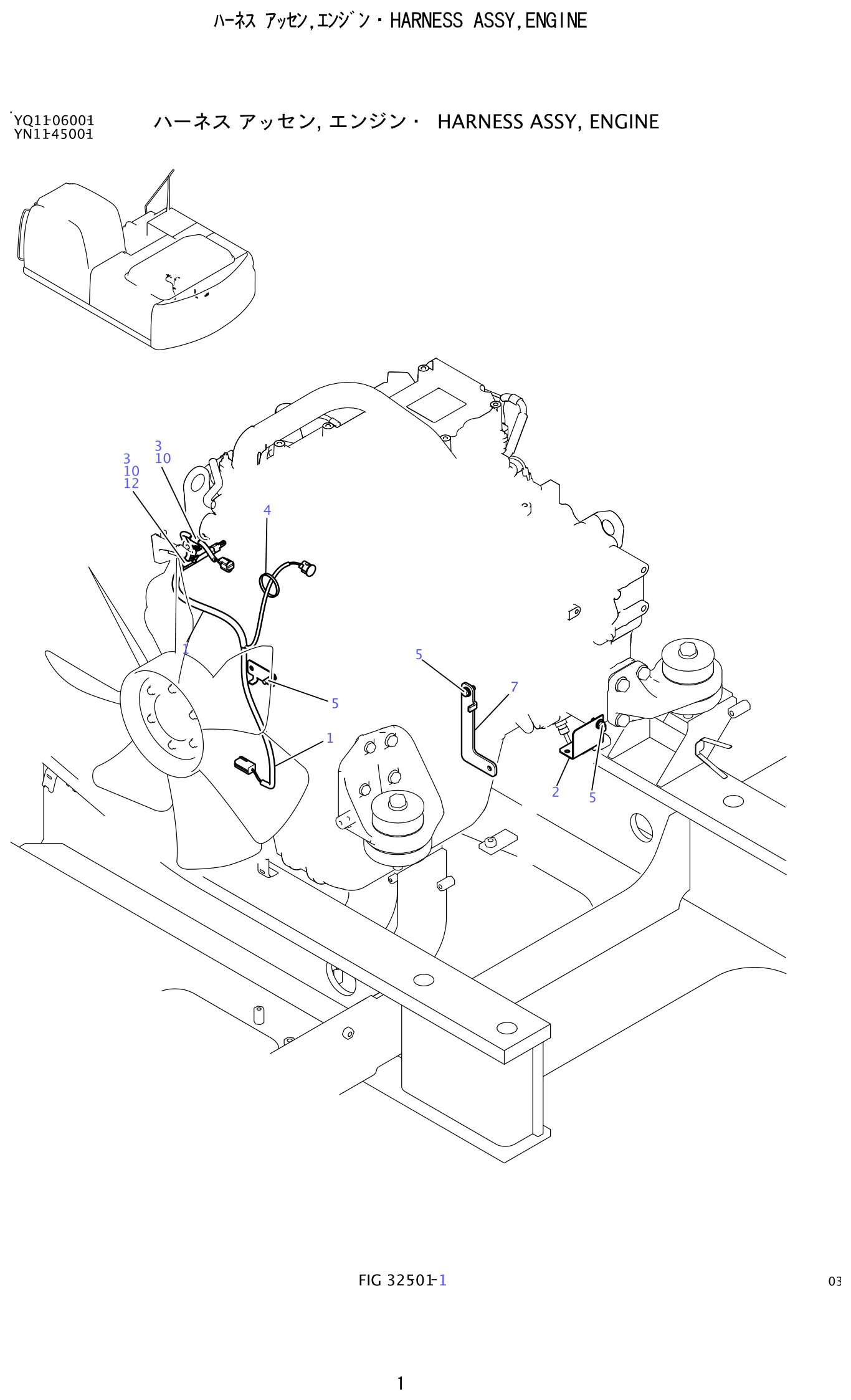

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Harness Assembly,Engine

The Harness Assembly,Engine group on the Kobelco SK200-8 contains 10 separately orderable part numbers. The Ref. column mirrors the callout numbers on the illustration, so a part can be ordered straight from the drawing. All numbers are taken from the machine's own parts catalogue — nothing here is generic.

• 10 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Structurally, these 10 numbers fall into 6 Kobelco number series — LQ16E, ZM73C, LC16E among the largest. Expect repeated items such as bracket, harness, clip and 4 hardware positions when you work through it.

The high-quantity positions are: ZM73C08020 (sems-bolt, ×3 per assembly); EW02E01016D2 (clip, ×2 per assembly); ZM73C06020 (sems-bolt, ×2 per assembly). The full list follows below.

Where no illustration exists for this section, the parts table below is the authoritative list — the callout numbering refers to the machine's own catalogue, and every entry is a real Kobelco part number.

Monitor and controller items vary by machine build, so the serial number matters more in this group than in most. Send it with the fault description and we confirm the correct variant before quoting.
