Kobelco SK200-8 Harness Assembly,Upp (Plate Floor) — Exploded View & Part Numbers

Kobelco SK200-8 · Harness Assembly,Upp (Plate Floor) · 10 part numbers

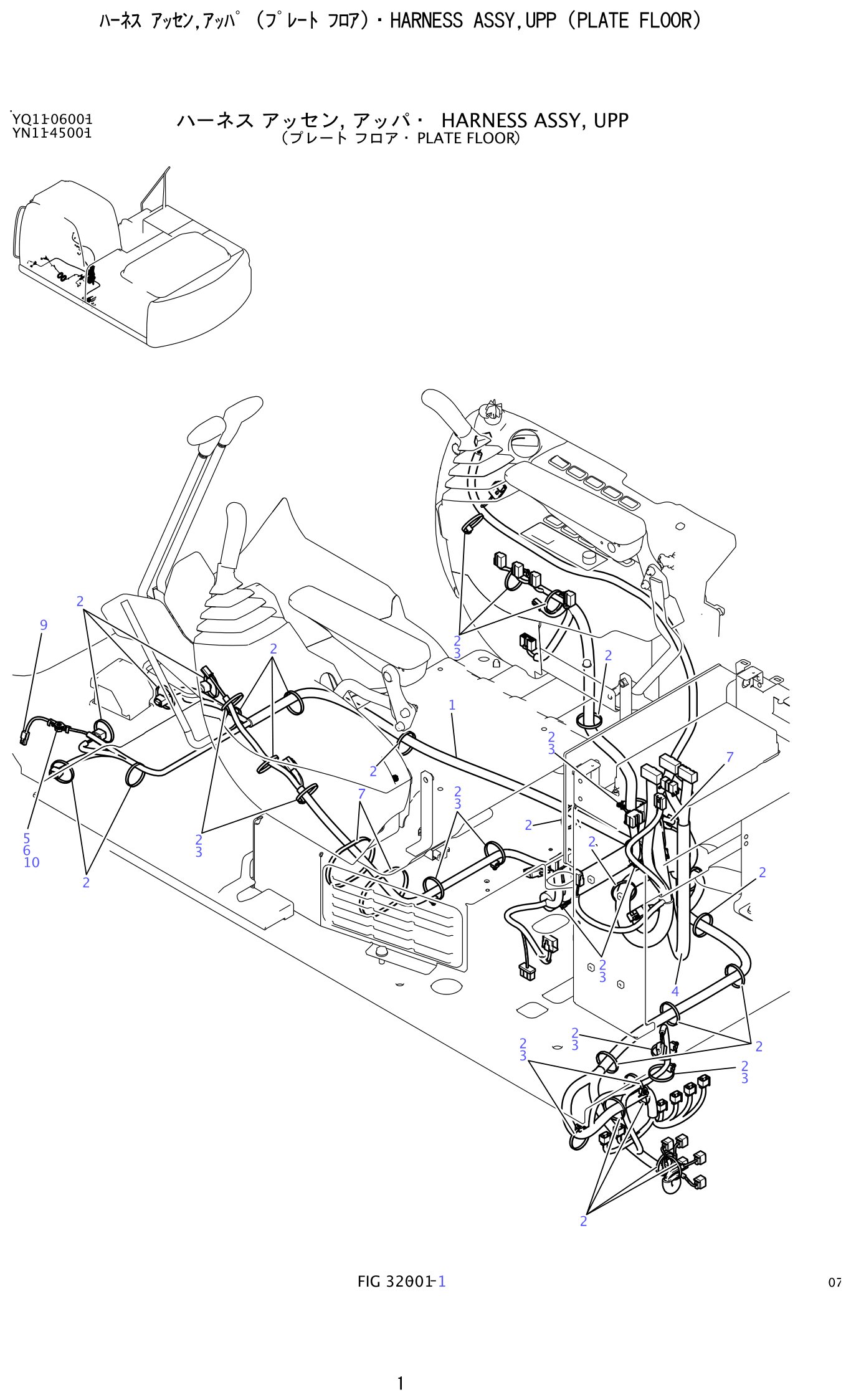

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Harness Assembly,Upp (Plate Floor)

Every part number in the Kobelco SK200-8 Harness Assembly,Upp (Plate Floor) is listed here — 10 of them, with quantities. Where the drawing shows a callout, the Ref. column in the table carries the same number. All numbers are taken from the machine's own parts catalogue — nothing here is generic.

• 10 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

The 10 entries group into 7 distinct number series, led by LC13E, YN13E. Expect repeated items such as harness, clip, washer and 6 hardware positions when you work through it.

Three numbers worth noting first: PY01P01043D3 (clip, ×35 per assembly); YN13E01375P1 (clip, ×14 per assembly); PY01P01043D8 (clip, ×3 per assembly). The full list follows below.

Send the Kobelco SK200-8 serial number with the fault description. Machine-side electrical changed across the production run on some variants, and the serial number confirms the correct part before you order.

Electrical faults on the Kobelco SK200-8 — a gauge that will not read, a machine that will not crank, a harness rub-through — are diagnosed by circuit, and the fix usually comes down to one part number from this group rather than a complete rewire.
